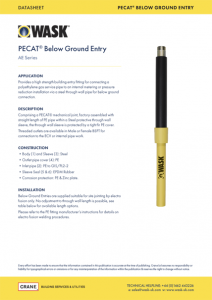

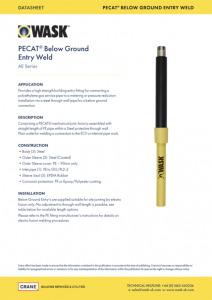

Body and Sleeve: Steel.
Outlet pipe cover : PE.
Inlet pipe : PE to GIS/PL2-2.
Sleeve seal : EPDM Rubber.
Corrosion protection: PE & Zinc plate.
Below Ground Entries are supplied suitable for site jointing by electro fusion only. No adjustment to through wall length is possible, see table below for available length options.
Please refer to the PE fitting manufacturer’s instructions for details on electro fusion welding procedures.
Meets GIS/PL3:2014 requirements, BSI Kite Mark accredited – KM535530.
Maximum Operating Pressure (MOP) = 2.0 Bar.
20mm SDR9 x ¾” to 63mm SDR11 x 2″.
The Product Data tables are filterable and searchable to help you find the products you are looking for faster.
Just click the column header that you want to filter or sort by. Then click
to add a product to the enquiry basket.
|
Part Number A to Z Z to A Select All AE2013 AE2016 AE2018 AE2022 AE2025 AE2027 AE2028 AE2029 AE2030 AE2041 AE2043 AE2044 AE2045 AE2046 AE2047 AE2048 AE2049 AE2052 AE2054 AE2055 AE2056 AE2057 AE2058 AE2059 AE2062 AE2065 AE2067 AE2068 AE2069 AE2070 AE2071 AE2072 AE2073 AE2074 AE2075 AE2076 AE2077 AE2078 AE2079 AE2080 AE2081 |
PE Size Ø A to Z Z to A Select All 20 25 32 63 90 125 180 250 315 |
PE Size SDR A to Z Z to A Select All 9 11 17.6 21 |
PE Size Grade A to Z Z to A Select All PE100 PE80 |
Outlet Size A to Z Z to A Select All 1" 10" 100 2" 250 3" 3/4" 4" 6" 8" 80 |
Outlet Type A to Z Z to A Select All FBSPT MBSPT NP16 WELD |
Body Type A to Z Z to A Select All MK1 MK2 MK3 |
Body Length A to Z Z to A Select All 0.5 0.6 0.75 0.8 1.0 1.00 1 1.2 1.4 1.5 1.85 |
PE Pup Length A to Z Z to A Select All 0.25 0.3 0.35 0.5 0.8 1.2 2.0 2.4 |
Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| AE2046 | 20 | 9 | PE80 | 3/4" | MBSPT | MK3 | 0.5 | 0.5 | |
| AE2078 | 20 | 9 | PE80 | 3/4" | MBSPT | MK3 | 0.75 | 0.5 | |
| AE2079 | 20 | 9 | PE80 | 3/4" | MBSPT | MK3 | 1.0 | 0.5 | |
| AE2043 | 25 | 11 | PE80 | 3/4" | MBSPT | MK3 | 0.5 | 0.5 | |
| AE2071 | 25 | 11 | PE80 | 3/4" | MBSPT | MK3 | 0.75 | 0.5 | |
| AE2072 | 25 | 11 | PE80 | 3/4" | MBSPT | MK3 | 1.0 | 0.5 | |
| AE2013 | 32 | 11 | PE80 | 1" | MBSPT | MK2 | 0.5 | 0.25 | |
| AE2016 | 32 | 11 | PE80 | 1" | MBSPT | MK2 | 1.0 | 0.5 | |
| AE2044 | 32 | 11 | PE80 | 1" | MBSPT | MK3 | 0.5 | 0.5 | |
| AE2055 | 32 | 11 | PE80 | 1" | MBSPT | MK2 | 1.4 | 0.35 | |
| AE2057 | 32 | 11 | PE100 | 1" | FBSPT | MK2 | 1.0 | 2.0 | |
| AE2058 | 32 | 11 | PE100 | 1" | FBSPT | MK3 | 0.6 | 2.4 | |
| AE2073 | 32 | 11 | PE80 | 1" | MBSPT | MK3 | 0.8 | 0.5 | |
| AE2074 | 32 | 11 | PE80 | 1" | MBSPT | MK3 | 1.0 | 0.5 | |
| AE2018 | 63 | 11 | PE80 | 2" | MBSPT | MK2 | 0.5 | 0.25 | |
| AE2022 | 63 | 11 | PE80 | 2" | MBSPT | MK2 | 1.0 | 0.5 | |
| AE2045 | 63 | 11 | PE80 | 2" | MBSPT | MK3 | 0.5 | 0.5 | |
| AE2056 | 63 | 11 | PE100 | 2" | FBSPT | MK2 | 0.6 | 2.4 | |
| AE2059 | 63 | 11 | PE100 | 2" | FBSPT | MK2 | 1.0 | 2.0 | |
| AE2068 | 63 | 11 | PE80 | 2" | WELD | MK2 | 0.5 | 0.5 | |
| AE2070 | 63 | 11 | PE80 | 2" | MBSPT | MK2 | 1.85 | 1.2 | |
| AE2075 | 63 | 11 | PE80 | 2" | MBSPT | MK3 | 0.75 | 0.5 | |
| AE2076 | 63 | 11 | PE80 | 2" | MBSPT | MK3 | 1.0 | 0.5 | |
| AE2025 | 90 | 11 | PE80 | 3" | WELD | MK2 | 0.5 | 0.5 | |
| AE2041 | 90 | 11 | PE80 | 3" | MBSPT | MK2 | 1.0 | 0.5 | |
| AE2049 | 90 | 11 | PE80 | 3" | WELD | MK2 | 0.75 | 0.5 | |
| AE2054 | 90 | 11 | PE80 | 80 | NP16 | MK2 | 0.5 | 0.5 | |
| AE2067 | 90 | 11 | PE80 | 80 | NP16 | MK2 | 1.5 | 0.5 | |
| AE2027 | 125 | 11 | PE80 | 4" | WELD | MK1 | 0.5 | 0.5 | |
| AE2028 | 125 | 11 | PE80 | 4" | WELD | MK1 | 1.00 | 0.5 | |
| AE2029 | 125 | 11 | PE80 | 100 | NP16 | MK1 | 0.5 | 0.5 | |
| AE2048 | 125 | 11 | PE80 | 4" | WELD | MK1 | 0.75 | 0.5 | |
| AE2062 | 125 | 11 | PE80 | 4" | WELD | MK1 | 1.5 | 0.5 | |
| AE2030 | 180 | 17.6 | PE80 | 6" | WELD | MK1 | 0.5 | 0.5 | |
| AE2047 | 180 | 17.6 | PE80 | 6" | WELD | MK1 | 1 | 0.5 | |
| AE2052 | 180 | 17.6 | PE80 | 6" | WELD | MK1 | 0.75 | 0.5 | |
| AE2065 | 180 | 17.6 | PE80 | 6" | WELD | MK1 | 1.5 | 0.3 | |
| AE2069 | 250 | 17.6 | PE80 | 8" | WELD | MK1 | 1.2 | 0.8 | |
| AE2077 | 250 | 17.6 | PE80 | 250 | NP16 | MK1 | 1.2 | 0.8 | |
| AE2080 | 315 | 21 | PE100 | 10" | WELD | MK1 | 1.2 | 0.8 | |
| AE2081 | 315 | 21 | PE100 | 250 | NP16 | MK1 | 0.5 | 0.5 |
