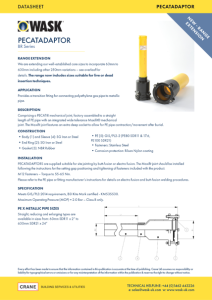

PECATADAPTOR
BR Series
The depth of the Maxifit end allows for some angularity on the steel pipe, making it easy to install and allowing for pipeline movement such as ground settlement.
The fitting, which is supplied complete with 0.5 metre PE 80 tail, replaces two back-to-back flange adapters which would normally be used when making such connections. This reduces the likelihood of leakage and reduces stockholding and installation costs.
Main body: Casting to BS.2789 Grade 420/12
Bolting Flange: Casting to BS.2789 Grade 420/12
M.C.I. to BS 6681-W40-05
PECAT sleeve: Mild steel – ST52.0 DIN 1629
Nuts/bolts: Stainless steel
Seal: Nitrile Grade BS EN 682-2002
The Maxifit end of the Pecatadaptor is simply slipped over the end of the ferrous or PVC pipe (no disassembling required) ensuring that the whole width of the seal is in contact with the outer surface of the pipe. The bolts are then tightened in sequence to the recommended torque rating.
Please refer to the PE pipe or fitting manufacturer’s instructions for details on electro-fusion and butt-fusion procedures.
The Product Data tables are filterable and searchable to help you find the products you are looking for faster.
Just click the column header that you want to filter or sort by. Then click
to add a product to the enquiry basket.
| Part Number | PE Size Ø | PE Size SDR | Nominal Size (mm) | Nominal Size (inches) | Pup Type Grade | Pup Type Length | Ø Range Min. | Ø Range Max. | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| BR2150 | 90 | 17.6 | 80 | 3" | PE80 | 0.5 | 85 | 107 | |
| BR2149 | 90 | 17.6 | 100 | 4" | PE80 | 0.5 | 107 | 132 | |
| BR2151 | 125 | 17.6 | 100 | 4" | PE80 | 0.5 | 107 | 132 | |
| BR2160 | 125 | 17.6 | 125 | 5" | PE80 | 0.5 | 132 | 158 | |
| BR2152 | 125 | 17.6 | 150 | 6" | PE80 | 0.5 | 158 | 184 | |
| BR2153 | 180 | 17.6 | 150 | 6" | PE80 | 0.5 | 158 | 184 | |
| BR2161 | 180 | 17.6 | 175 | 7" | PE80 | 0.5 | 189 | 212 | |
| BR2154 | 250 | 17.6 | 200 | 8" | PE80 | 0.5 | 218 | 244 | |
| BR2162 | 250 | 21 | 225 | 9" | PE100 | 0.5 | 243 | 269 | |
| BR2163 | 250 | 21 | 250 | 10" | PE100 | 0.5 | 266 | 295 | |
| BR2137 | 315 | 21 | 250 | 10" | PE100 | 1.0 | 266 | 295 | |
| BR2138 | 315 | 21 | 300 | 12" | PE100 | 1.0 | 315 | 349 | |
| BR2164 | 315 | 21 | 350 | 14" | PE100 | 1.0 | 351 | 368 | |
| BR2159 | 315 | 21 | 400 | 15" | PE100 | 1.0 | 405 | 422 | |
| BR2139 | 355 | 21 | 300 | 12" | PE100 | 1.0 | 315 | 349 | |
| BR2140 | 355 | 21 | 350 | 14" | PE100 | 1.0 | 351 | 368 | |
| BR2141 | 400 | 21 | 350 | 14" | PE100 | 1.0 | 351 | 368 | |
| BR2142 | 400 | 21 | 400 | 15" | PE100 | 1.0 | 405 | 422 | |
| BR2165 | 400 | 21 | 400 | 16" | PE100 | 1.0 | 434 | 451 | |
| BR2143 | 450 | 21 | 400 | 16" | PE100 | 1.0 | 434 | 451 | |
| BR2144 | 450 | 21 | 450 | 18" | PE100 | 1.0 | 487 | 504 | |
| BR2145 | 500 | 21 | 450 | 18" | PE100 | 1.0 | 487 | 504 | |
| BR2166 | 500 | 21 | 500 | 20" | PE100 | 1.0 | 540 | 557 | |
| BR2167 | 500 | 21 | 500 | 21" | PE100 | 1.0 | 555 | 572 | |
| BR2168 | 630 | 21 | 525 | 21" | PE100 | 1.0 | 555 | 572 | |
| BR2169 | 630 | 21 | 525 / 550 | 21" / 22" | PE100 | 1.0 | 582 | 599 | |
| BR2146 | 630 | 21 | 600 | 24" | PE100 | 1.0 | 647 | 662 |
